Year 10 Interactive Maths - Second Edition

Sketching Quadratic Inequalities

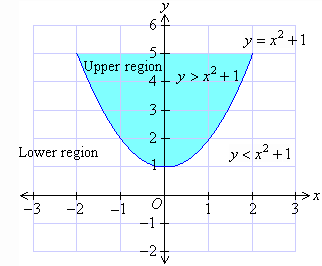

The parabola divides the Cartesian plane into two regions. One region is above the parabola and the other is below the parabola.

Example 22

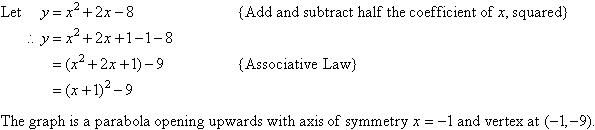

Solution:

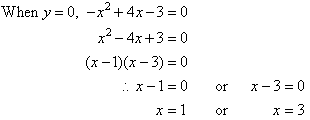

x-intercepts:

y-intercept:

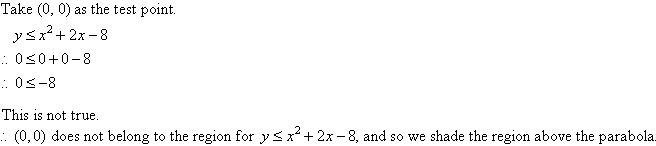

Test point:

Note:

The required region consists of the unshaded region and the parabola.

Example 23

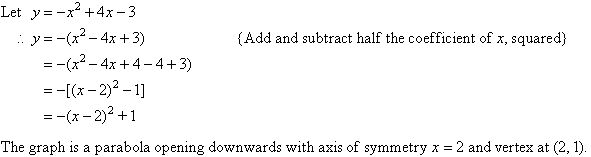

Solution:

x-intercepts:

y-intercept:

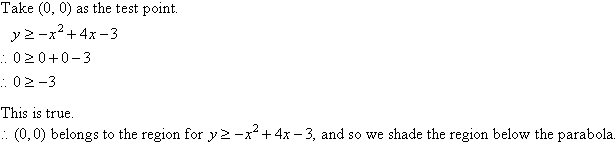

Test point:

Note:

The required region consists of the unshaded region and the parabola.

Key Terms

lower region, upper region, test point, required region
